SpringCloud-Gateway微服务校验登录

登录流程分析

在原来的单体服务中，我们可以定义一个拦截器或者过滤器来拦截用户携带的认证信息，并且每个service可以很方便的获取到登录的用户信息。

但是在微服务的场景之下，需要在每一个微服务中都去配置解析token的拦截器，这并不安全且不现实。既然我们需要做登录校验，但是又不希望在每一个微服务中都重复的做登录校验，那我们就可以将这个工作交给我们的网关，GateWay。

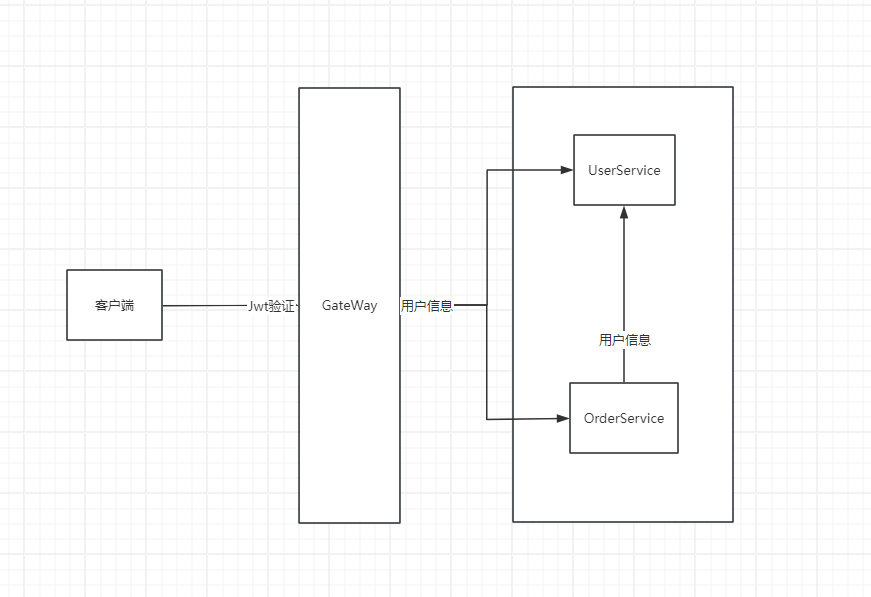

此时我们登录校验的流程则变成了：

1. 前端携带jwt令牌发起请求到网关
2. 网关在请求路由之前做jwt令牌校验
3. 后续的微服务需要使用到用户信息，则需要将用户信息传递到具体的微服务
4. 微服务之间可能会发生调用，也需要将用户信息传递到其他微服务

代码实现

网关GlobalFilter

import com.xiaoyun.config.AuthProperties;
import com.xiaoyun.utils.JwtTool;
import lombok.RequiredArgsConstructor;
import org.springframework.cloud.gateway.filter.GatewayFilterChain;
import org.springframework.cloud.gateway.filter.GlobalFilter;
import org.springframework.core.Ordered;
import org.springframework.http.server.reactive.ServerHttpRequest;
import org.springframework.http.server.reactive.ServerHttpResponse;
import org.springframework.stereotype.Component;
import org.springframework.util.AntPathMatcher;
import org.springframework.web.server.ServerWebExchange;
import reactor.core.publisher.Mono;

import javax.annotation.Resource;
import java.util.List;

@Component
@RequiredArgsConstructor
public class LoginGlobalFilter implements GlobalFilter, Ordered {

    @Resource
    private final AuthProperties authProperties;

    private final AntPathMatcher pathMatcher = new AntPathMatcher();

    @Resource
    private final JwtTool jwtTool;

    @Override
    public Mono<Void> filter(ServerWebExchange exchange, GatewayFilterChain chain) {
        // 1.获取Request
        ServerHttpRequest request = exchange.getRequest();
        // 2.判断当前请求是否需要被拦截
        if(isAllowPath(request)){
            // 无需拦截，放行
            return chain.filter(exchange);
        }
        // 3.获取token
        String token = null;
        List<String> headers = request.getHeaders().get("authorization");
        if(headers != null) {
            token = headers.get(0);
        }
        // 4.解析token
        Long userId = null;
        try {
            userId = jwtTool.parseToken(token);
            System.out.println("userId = " + userId);
        } catch (Exception e) {
            ServerHttpResponse response = exchange.getResponse();
            response.setRawStatusCode(401);
            return response.setComplete();
        }
        // 5.传递用户信息到下游服务
        String userInfo = userId.toString();
        ServerWebExchange exc = exchange.mutate()
                .request(builder -> builder.header("user-info", userInfo))
                .build();
        // 6.放行
        return chain.filter(exc);
    }

    private boolean isAllowPath(ServerHttpRequest request) {
        boolean flag = false;
        // 1.获取当前路径
        // String method = request.getMethodValue();
        String path = request.getPath().toString();
        // 2.要放行的路径
        for (String excludePath : authProperties.getExcludePaths()) {
            boolean isMatch = pathMatcher.match(excludePath, path);
            if(isMatch){
                flag = true;
                break;
            }
        }
        return flag;
    }

    @Override
    public int getOrder() {
        return 0;
    }
}

网关拦截器将用户信息放到了请求体中，具体的微服务需要获取这个用户信息，存储到threadLocal中

用户信息过滤器及ThreadLocal工具类

import cn.hutool.core.util.StrUtil;
import com.xiaoyun.common.utils.UserContext;
import org.springframework.web.servlet.HandlerInterceptor;

import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

public class UserInfoInterceptor implements HandlerInterceptor {
    @Override
    public boolean preHandle(HttpServletRequest request, HttpServletResponse response, Object handler) throws Exception {
        // 1.获取请求头中的用户
        String userInfo = request.getHeader("user-info");
        // 2.判断是否为空，不为空，存入UserContext
        if (StrUtil.isNotBlank(userInfo)) {
            UserContext.setUser(Long.valueOf(userInfo));
        }
        // 3.放行
        return true;
    }

    @Override
    public void afterCompletion(HttpServletRequest request, HttpServletResponse response, Object handler, Exception ex) throws Exception {
        // 清除用户
        UserContext.removeUser();
    }
}

public class UserContext {
    private static final ThreadLocal<Long> tl = new ThreadLocal<>();

    /**
     * 保存当前登录用户信息到ThreadLocal
     * @param userId 用户id
     */
    public static void setUser(Long userId) {
        tl.set(userId);
    }

    /**
     * 获取当前登录用户信息
     * @return 用户id
     */
    public static Long getUser() {
        return tl.get();
    }

    /**
     * 移除当前登录用户信息
     */
    public static void removeUser(){
        tl.remove();
    }
}

OpenFeign传递用户信息

定义拦截器

import com.xiaoyun.common.utils.UserContext;
import feign.RequestInterceptor;
import feign.RequestTemplate;

public class UserInfoInterceptor implements RequestInterceptor {
    @Override
    public void apply(RequestTemplate template) {
        Long userId = UserContext.getUser();
        if (userId != null) {
            template.header("user-info", userId.toString());
        }
    }
}

配置拦截器

import feign.Logger;
import feign.RequestInterceptor;
import org.springframework.context.annotation.Bean;

public class FeignLogLevelConfig {

    @Bean
    public Logger.Level feignLogLevel(){
        return Logger.Level.FULL;
    }

    @Bean
    public RequestInterceptor userInfoInterceptor(){
        return new UserInfoInterceptor();
    }
}

配置配置类

@EnableFeignClients(defaultConfiguration = FeignLogLevelConfig.class)
